midUTS Top View
Description:

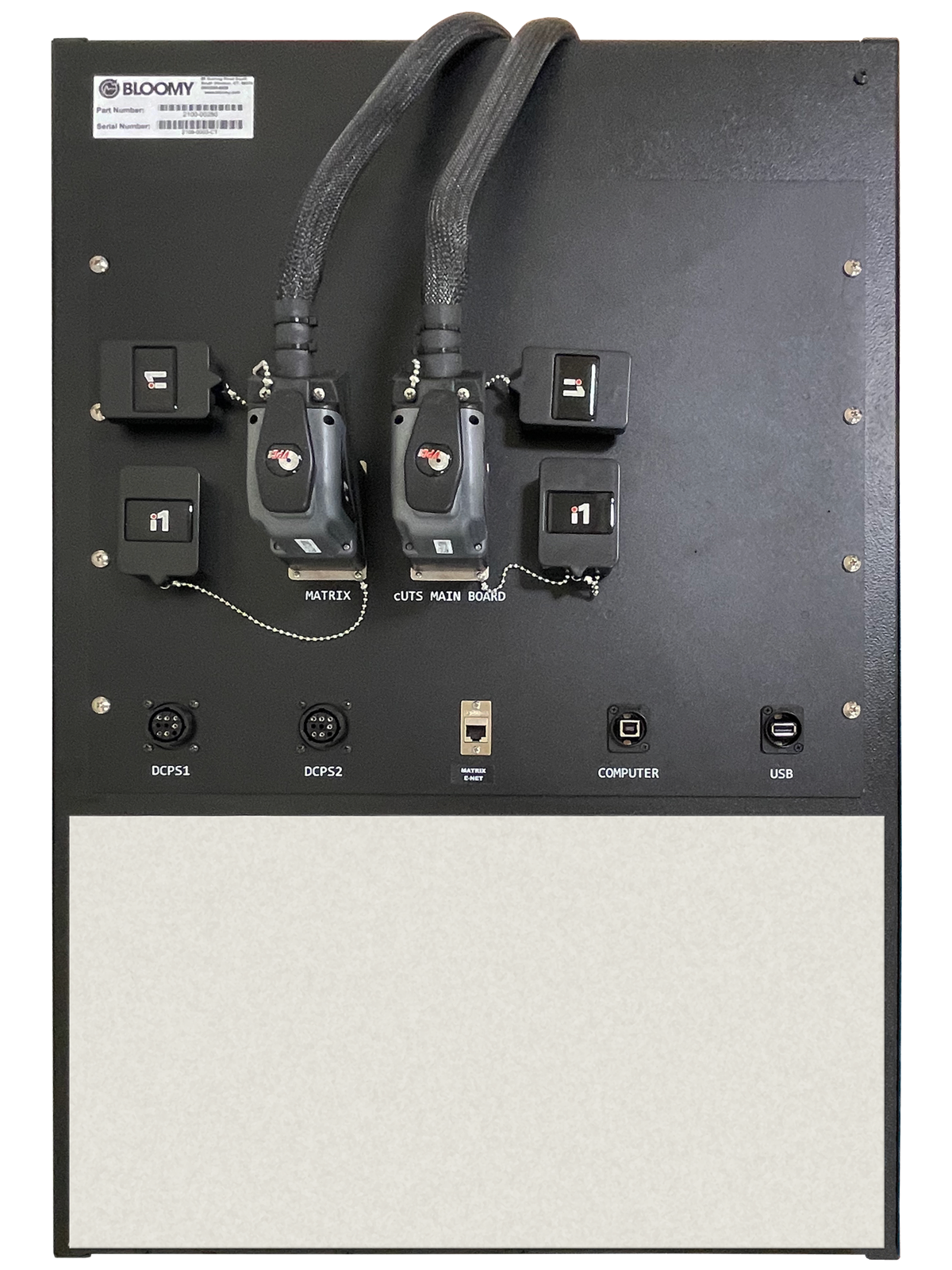

This top view of the midUTS shows the two VPC i1 mass interconnect connectors, two circular power connectors for the two programmable DC power supply outputs (to test fixture), Ethernet RJ45 connector to control switch matrix, and two USB connectors: b-type connector to computer (provides communication to USB-based instruments inside midUTS cabinet), a-type connector for bar code scanner. Along the top front of the midUTS cabinet is an ESD mat that a UUT can be placed on.
