midUTS with UUT Back View
Description:

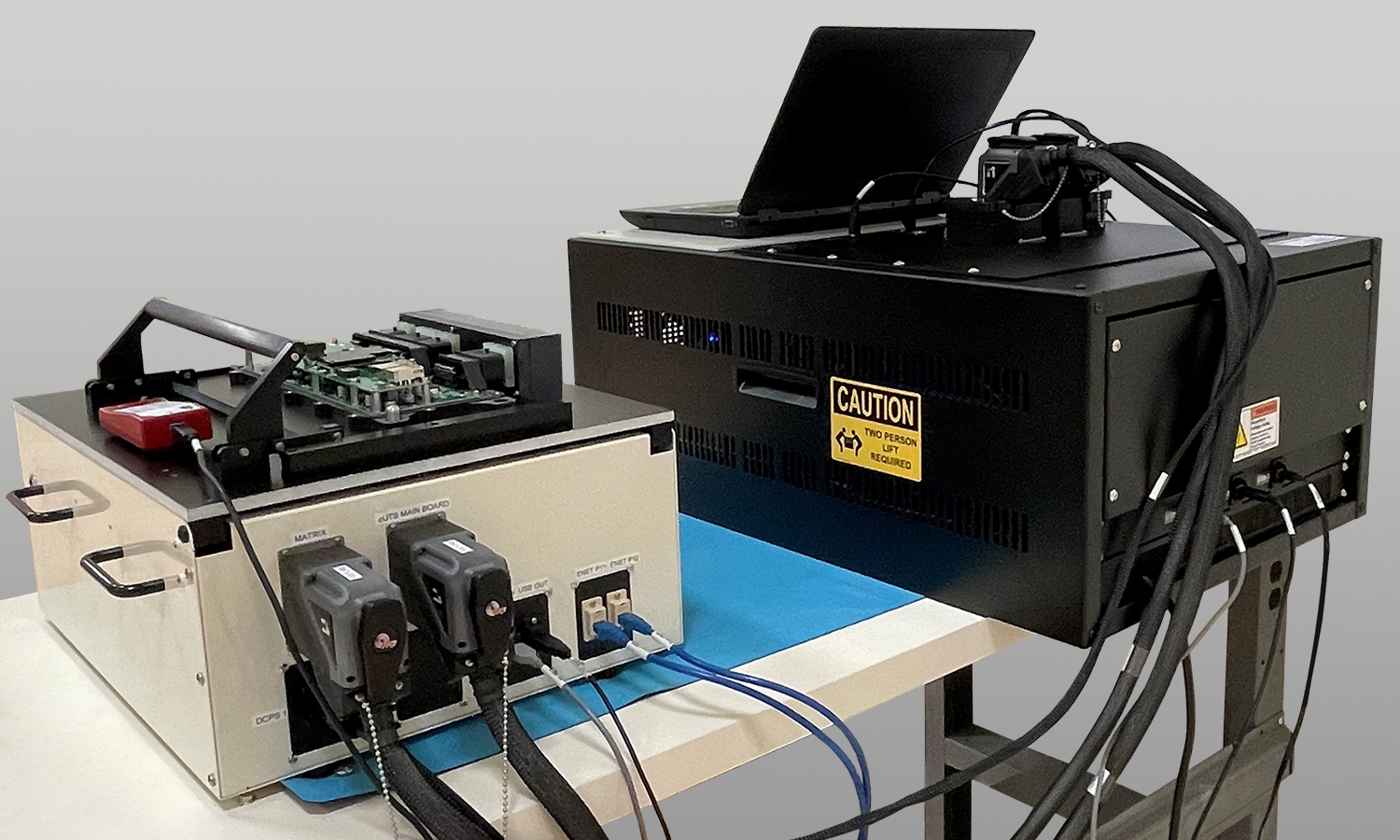

This view shows the connections between the midUTS and UUT test fixture. The two VPC i1 mass interconnect connectors connect the switch matrix and GPIO signal lines between the midUTS and test fixture. Programmable power supply lead from midUTS to test fixture provides power to the UUT. Additional USB ports are provided on the back of the midUTS to provide additional ports to communicate to USB devices inside the UUT test fixture.
